Base Clock Resources for FlexRIO Modular I/O FPGA Modules

A base clock is a digital signal existing in hardware that you can use as a clock for an FPGA application.

Your FlexRIO with Modular I/O FPGA Module provides several base clock resources that can be used to run a LabVIEW FPGA VI. Use the table below to determine which base clock resources are available for your FlexRIO FPGA Module.

Table 1. Base Clock Resources by Module
Base Clock FPGA Module
40 MHz Onboard Clock all FlexRIO Modular I/O FPGA Modules
PXI_CLK10 all FlexRIO Modular I/O FPGA Modules
100 MHz Clock all FlexRIO Modular I/O FPGA Modules
200 MHz Clock all FlexRIO Modular I/O FPGA Modules

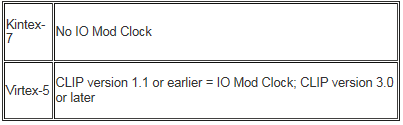

IO Module Clock 0/IO Module Clock 1 PXI-795x, PXIe-796x
PXIe_DStarA PXIe-796x, PXIe-797x
DRAM Clock PXIe-797x

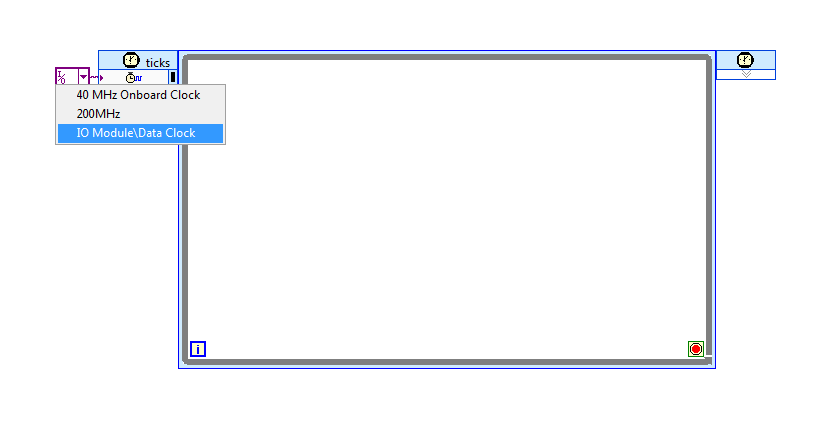

  • 40 MHz Onboard Clock—The 40 MHz Onboard Clock is the default clock in your LabVIEW FPGA project. This clock can be used as a top-level clock for running your LabVIEW FPGA VI. The top-level clock on an FPGA target determines the execution time of the individual functions and VIs on the FPGA VI block diagram. If you change the frequency of the top-level clock, you also change the execution speed of functions on the block diagram and the execution rate of the FPGA VI.
  • PXI_CLK10—PXI_CLK10 can be used as a source for running your LabVIEW FPGA VI.
  • 100 MHz Clock—The 100 MHz Clock can be used as a source for running your LabVIEW FPGA VI. The 100 MHz Clock is generated from a PLL in the FlexRIO FPGA module.
  • 200 MHz Clock—The 200 MHz Clock can be used as a source for running your LabVIEW FPGA VI. The 200 MHz Clock is generated from a PLL in the FlexRIO FPGA module.

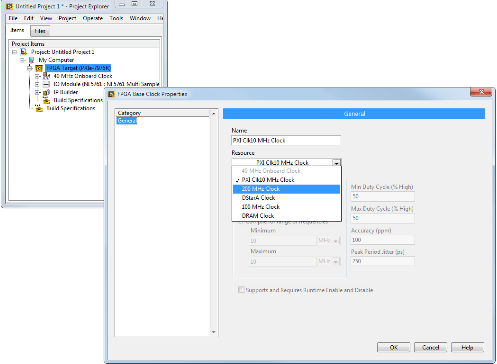

  • IO Module Clock 0/IO Module Clock 1—External clock source from your adapter module socketed CLIP. Add this clock to your project from the FPGA Base Clock Properties dialog box. Refer to the CLIP documentation for your specific adapter module for information about the device specific uses of this clock.
  • PXIe_DStarA—Configure this clock to the frequency of your choice for running your LabVIEW FPGA VI. You can drive the PXIe_DStarA using a timing and synchronization device.
  • DRAM Clock—DRAM Clock is a 167 MHz clock that drives the DRAM interface.

    • Routing Diagram for PXI-795x Base Clocks

    On PXI-795x modules, the 40 MHz onboard clock is generated using a PLL outside of the FPGA. The 100 MHz clock and 200 MHz clock are generated within the device FPGA using a PLL.



    Routing Diagram for PXIe-796x Base Clocks

    On PXIe-796x modules, the 40 MHz onboard clock, the 100 MHz clock, and the 200 MHz clock are generated within the device FPGA using a PLL. The PLL source is the onboard 100 MHz oscillator clock. After the VI is downloaded, the FPGA detects whether or not the backplane 100 MHz oscillator clock is present, and if so, it configures the PLL to lock to the backplane 100 MHz oscillator clock.



    Routing Diagram for PXIe-797x Base Clocks

    On PXIe-797x modules, the 40 MHz onboard clock, the 100 MHz clock, and the 200 MHz clock are generated within the device FPGA using a PLL. The PLL source is either the PXI Express Clk100 backplane clock or the onboard 100 MHz oscillator clock. After the VI is downloaded, the FPGA detects whether or not the backplane PXI Express 100 MHz clock is present, and if so, it configures the PLL to lock to the backplane PXI Express 100 MHz clock. If the PXI Express backplane clock is not present (for example, in a CompactPCI Express chassis), then the device FPGA sets the PLL to lock to the onboard 100 MHz oscillator clock.
