The
Image Display Control is a LabVIEW front panel control that allows the user to display the
IMAQ image data type . This control installs with NI-IMAQ 2.6 and later, and can be used with LabVIEW 7.0 later. Vision Development Module is not needed to use the Image Display Control.

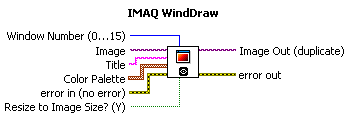

Additional Information
Overview
The Image Display Control allows the user to display information about the image, change the current view of the image, and create a region of interest.
Tools
The toolbar on the left-hand side of the image display contains 13 tools that can be used to change the display of the image and draw various regions of interest (ROIs).
- Zoom Tool
- Selection Tool
- Pan Tool
- Point Tool
- Line Tool
- Rectangle Tool
- Rotated Rectangle Tool
- Polyline Tool
- Polygon Tool
- Freehand Tool
- Closed Freehand Tool
- Ellipse Tool
- Annulus Tool
|  |
Image Information
The Image Display Control can also display information about the current image, view, and ROI. The image information display is located below the image display and displays five elements.
Image size- Zoom Factor
- Image Type
- Current Pixel Value
- ROI Information
Properties
The visual appearance of the Image Display Control can be changed by right-clicking on the control on the front panel. The Visible Items category allows the user to display the Label, Caption, Scrollbars, Tools, and Image Information.

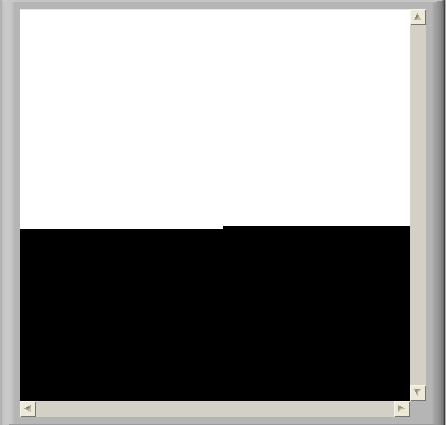

The Snapshot option gives the user the ability to display the image after the image has been disposed with IMAQ Dispose.
The Save Image... option allows the user to save the displayed image as a PNG, Bitmap, JPEG, or TIFF image.
