我要到哪裡去找National Instruments產品的尺寸圖?



硬體: Multifunction DAQ (MIO)>>Portable>>USB-6251 Mass Term

問題: 我有一些National Instruments的硬體裝置並想知道是否有他們的尺寸圖.

解答:

ni.com網站上有許多產品的尺寸圖可供您免費下戴:

方法1:

1. 在ni.com上搜尋您的裝置.

2. 點選 Resources(資源) 並選擇2-D或3-D的尺寸圖.

方法2:

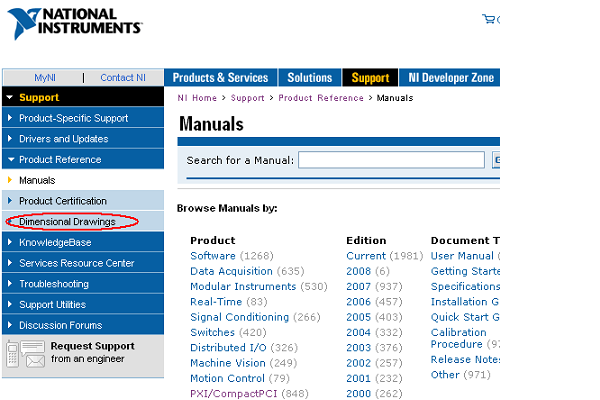

1. 在ni.com網站上選擇 Support 並點選 Product Manuals. (或直接至此網址 http://sine.ni.com/manuals/).

2. 在左手邊點選 Dimensional Drawings.

點選後您就會被帶到放置尺寸圖的網頁. 您可以使用產品別像是 DAQ或GPIB來搜尋. 或者您可以使用搜尋的功能直接找產品的型號.

如果無法顯示此連結, 請聯絡National Instruments Support.



相關連結: Knowledge Base: CAD Drawings for CompactRio, Controllers, Modules and Accessories
Knowledge Base: Where Can I Find Dimensional Drawings and Thermal Specifications for the FP-ENC1 Industrial Enclosure?
Knowledge Base: What Are The Dimensions Of Compact FieldPoint I/O Modules?

附加檔案:





報告日期: 09/05/2007
最後更新: 04/06/2009
文件偏號: 4D4F641S
